Infrastructure and Plan

How Infrastructures and Plans work together to create a VPC
Infrastructures are abstractions that allow you to create a Virtual Private Cloud (VPC) instance in the DuploCloud Portal. When you create an Infrastructure, a Plan is automatically generated to supply the network configuration necessary for your Infrastructure to run.
DuploCloud automatically deploys NAT gateways across availability zones (AZs) for all Infrastructures that you create with DuploCloud.

Configuring EKS features (optional)

You can customize your EKS configuration:
  • Enable EKS endpoints, logs, Cluster Autoscaler, and more. See the EKS Setup topics for information about configuration options.

Configuring ECS features (optional)

You can customize your ECS configuration. See the ECS Setup topic for information about configuration options.

Creating an Infrastructure

When you create a DuploCloud Infrastructure, you create an isolated environment that maps to a Kubernetes cluster.
Create a DuploCloud Infrastructure in the DuploCloud Portal:
  1. 1.
    Select Administrator -> Infrastructure from the navigation menu.
  2. 2.
    Click Add.
  3. 3.
    Define the Infrastructure by completing the fields on the Add Infrastructure form.
  4. 4.
    Select Enable EKS to enable EKS for the Infrastructure, or select Enable ECS Cluster to enable an ECS Cluster during Infrastructure creation.
  5. 5.
    Optionally, select Advanced Options to specify additional configurations (such as Public and Private CIDR Endpoints).
  6. 6.
    Click Create. The Infrastructure is created and is listed on the Infrastructure page.

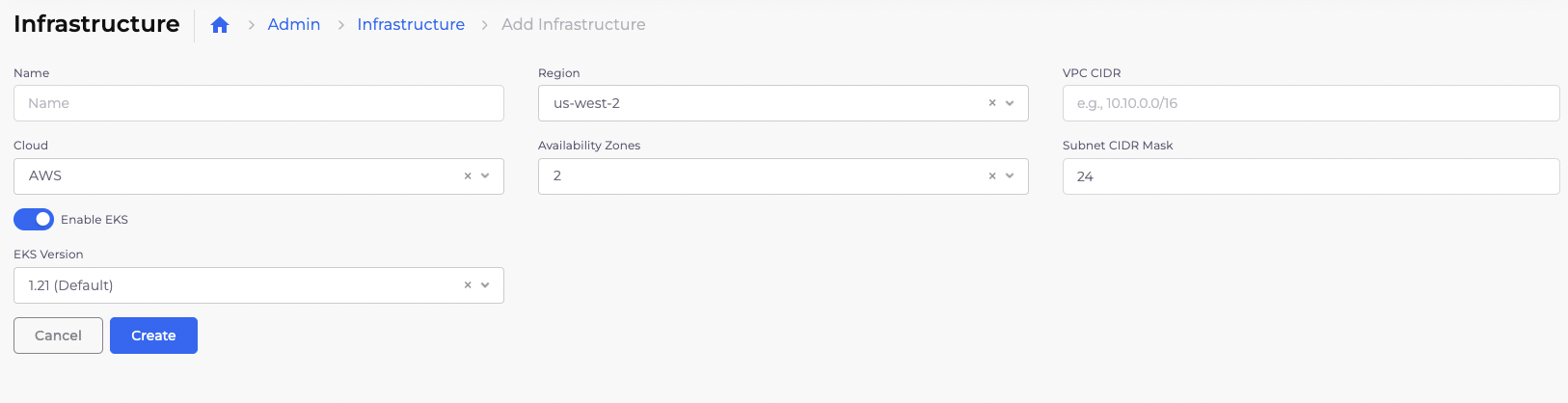

AWS Add Infrastructure page with highlighted Enable EKS and Enable ECS Cluster options
When you create the Infrastructure, DuploCloud creates the following components:
  • VPC with 2 subnets (private, public) in each availability zone
  • Required security groups
  • NAT Gateway
  • Internet Gateway
  • Route tables
  • VPC peering with the master VPC, which is initially configured in DuploCloud

Viewing Infrastructure settings

  1. 1.
    In the DuploCloud Portal, navigate to Administrator -> Infrastructure. The Infrastructure page displays.
  2. 2.
    From the Name column, select the Infrastructure containing settings that you want to view.
  3. 3.
    Click the Settings tab. The Infrastructure settings display.
Settings tab on the Infrastructure page

Plans and Infrastructures

Once the Infrastructure is created, DuploCloud automatically creates a Plan (with the same Infrastructure name) with the Infrastructure configuration. The Plan is used to create Tenants.
DuploCloud Plan Details
Up to one instance (0 or 1) of an EKS or ECS is supported for each DuploCloud Infrastructure.
