Ingress

Ingress controllers abstract the complexity of routed Kubernetes application traffic, providing a bridge between Kubernetes services and services that you define.
As an example, this procedure guides you through enabling and configuring Ingress to support two load balancers:
  • An Application Load Balancer (ALB). An ALB provides outbound connections to cluster nodes inside the AKS virtual network, translating the private IP address to a public IP address as part of its Outbound Pool.
  • A Network Load Balancer (NLB). An NLB distributes traffic across several servers by using the TCP/IP networking protocol. By combining two or more computers that are running applications into a single virtual cluster, NLB provides reliability and performance for web servers and other mission-critical servers.
To add an SSL certificate to a service using Kubernetes Ingress, see Using the SSL certificate for Ingress in DuploCloud in the Import SSL Certificates prerequisite for Azure in DuploCloud.

Enable the Ingress Controller

Before you add an Ingress rule, you need to enable the Ingress Controller for the application gateway.
  1. 1.
    In the DuploCloud Portal, navigate to Administrator -> Infrastructure.
  2. 2.
    Select the Infrastructure from the Name column.
  3. 3.
    Click the Settings tab.
  4. 4.
    Click Add. The Infra-Set Custom Data pane displays.
  5. 5.
    In the Setting Name field, select Enable App Gateway Ingress Controller. Click Enable and Set. In the Settings tab, the Enable App Gateway Ingress Controller setting contains the true value.
Enable App Gateway Ingress Controller configured with true value

Adding a Load Balancer Listener using the K8S NodePort

Add a load balancer listener that uses the Kubernetes NodePort (K8S NodePort).
Using Kubernetes Health Check allows AKS's Application Load Balancer to determine whether your service is running properly.

Before you begin

You must create Services to run the ALB and NLB load balancers. In this example, we name these services s1-alb and s4-nlb, respectively.
Services running ALB and NLB

Adding a Load Balancer Listener

  1. 1.
    In the DuploCloud Portal, navigate DevOps -> Containers -> AKS/Native.
  2. 2.
    On the Services page, select the Service name in the Name column.
  3. 3.
    Click the Load Balancers tab.
    Load Balancer tab on the AKS Services page
  4. 4.
    Click Configure Load Balancer. The Add Load Balancer Listener pane appears.
  5. 5.
    In the Select Type field, select K8S Node Port.
  6. 6.
    In the Health Check field, add the Kubernetes Health Check URL for this container.
  7. 7.
    Complete the other fields in the Add Load Balancer Listener and click Add.

Add the Kubernetes Ingress rule

Add an Ingress rule to listen on port 80 (in this example) using both ALB and NLB load balancers.
If you use a port other than 80, you must define an additional Security Group rule for that port. See this section for more information.
DuploCloud Platform supports defining multiple paths in Ingress.
  1. 1.
    In the DuploCloud Portal, navigate to DevOps -> Containers -> AKS / Native.
  2. 2.
    Click the K8S Ingress tab.
  3. 3.
    Click Add. The Add Kubernetes Ingress page displays.
  4. 4.
    Supply the Ingress Name, select the Ingress Controller azure-application-gateway, and set Visibility to Public.
    Add Kubernetes Ingress page for AKS
  5. 5.
    Click Add Rule. The Add Ingress Rule pane displays. Specify a unique Path identifier.
  6. 6.
    In the Service Name field, select s1-alb:80. Click Add Rule to add the ALB load balancer.
    Add Ingress Rule pane
  7. 7.
    Add another rule by clicking Add Rule. The Add Ingress Rule pane displays. In the Service Name field, select s4-nlb:80. Click Add Rule to add the NLB load balancer.
  8. 8.
    On the Add Kubernetes Ingress page, Add to finish setting up the load balancer rules.

Adding a Security Group Rule

Port 80 is configured by default when adding Ingress. If you want to use a custom port number other than 80, set up an additional Security Group Rule for the custom port using this procedure.
  1. 1.
    In the DuploCloud Portal, navigate to Administrator -> Infrastructure.
  2. 2.
    Select the Infrastructure from the Name column.
  3. 3.
    Click the Security Group Rules tab.
  4. 4.
    Click Add. The Add Infrastructure Security pane displays.

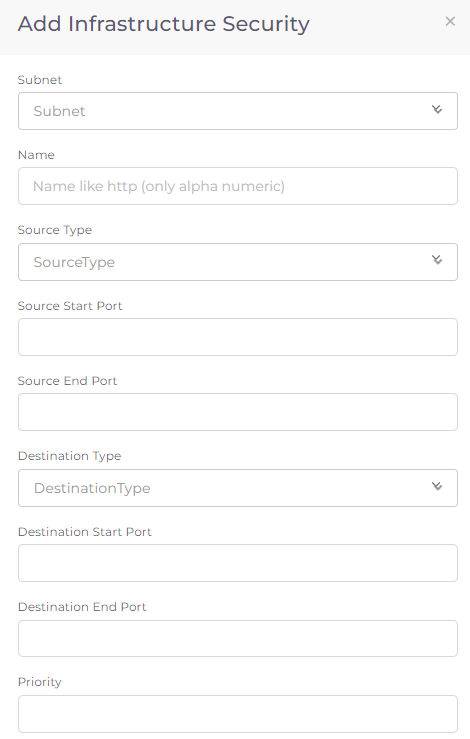

    Add Infrastructure Security pane
  5. 5.
    Define the rule and click Add. The rule is added to the Security Group Rules list.
Security Group Rules tab with rule for port 81

View Ingress

Once Ingress is configured, you can access Services based on the rules for each DNS.
K8S Ingress tab on the AKS Ingress page
By executing curl commands, you can see the difference in the output for each service. Configured services are accessed based on the DNS name specified in the DuploCloud Portal and the paths that you configured when you added Ingress rules.
>curl http://sample-ingress.qaapps.duplocloud.net/path1/ this is service1 >curl http://sample-ingress.qaapps.duplocloud.net/path2/ this is service2 >curl -H "Host: example.com" http://sample-ingress.qaapps.duplocloud.net/ this is service3
