Containers and Services

Using containers and DuploCloud Services with AWS EKS and ECS

EKS/ECS support for containers and services
DuploCloud supports Elastic Kubernetes Service (EKS/ECS) out of the box.
Kubernetes clusters are created during Infrastructure setup using the Administrator -> Infrastructure option in the DuploCloud Portal. The cluster is created in the same Virtual Private Cloud (VPC) as the Infrastructure. Building an Infrastructure with an EKS/ECS cluster may take some time.
Next, you deploy an application within a Tenant in Kubernetes. The application contains a set of VMs, a Deployment set (Pods), and an application load balancer. Pods can be deployed either through the DuploCloud Portal or through kubectl,using HelmCharts.
DuploCloud Services and Containers
You can deploy native Docker containers in virtual machines (VMs) with the DuploCloud platform. Adding a Service in the DuploCloud Platform is not the same as adding a Kubernetes service.
Deploying DuploCloud Services, by clicking the Add button in the EKS/Native tab, implicitly converts Services into either a deployment set or a StatefulSet. If there are no volume mappings, then the service is mapped to a deployment set. Otherwise, it is mapped to a StatefulSet, which you can force creations of if needed. Most configuration values are self-explanatory, such as Images, Replicas, and Environmental Variables.
You can supply advanced configuration options in the Other K8 Config field. The content of this field maps one-to-one with the Kubernetes API. Configurations for deployment are StatefulSets and are supported by placing the appropriate JSON code in the Other K8 Config section. For example, to reference Kubernetes Secrets using a YAML config map, create the following JSON code:
	"Volumes": [
		{
			"name": "config-volume",
			"configMap": {
				"name": "game-config"
			}
		}
	],
	"VolumesMounts": [
		{
			"name": "config-volume",
			"mountPath": "/etc/config"
		}
	]
}
Adding a DuploCloud EKS/Native Service
1.In the DuploCloud Portal, select DevOps -> Containers -> EKS/Native from the navigation pane.
2.Click Add. The Add Service page displays.
3.Complete the fields on the page, including Service Name, Docker Image name, and number of Replicas. Use Allocation Tags to deploy the container in a specific set of hosts.
4.To force the creation of Kubernetes StatefulSets, select Yes in the Force StatefulSets field.
Do not use spaces when creating Service or Docker image names.
The number of Replicas that you define must be less than or equal to the number of hosts in the fleet.
Add Service page
Adding a DuploCloud ECS Service
For an example of how to create an ECS Service, see this tutorial.
Enabling read-only processing for ECS Services
If you want to grant a service read-only access to root filesystems, add a configuration flag in your DuploCloud Infrastructure.
1.In the DuploCloud Portal, navigate to Administrator -> System Settings.
2.Click the System Config tab.
3.Click Add. The Add Config pane displays.
4.From the Config Type list box, select Other. The Other Config Type field displays.
5.In the Other Config Type field, enter Flags.
6.In the Key field, enter EnableECSReadonlyProcessing.
7.in the Value field, enter true.
8.Click Submit.
Add Config pane with EnableECSReadonlyProcessing Key
The new configuration is displayed in the System Config tab.
EnableECSReadonlyProcessing configuration enabled with Value of true in System Config tab
Creating multiple containers for ECS Services using a Task Definition
You can create up to five (5) containers for ECS services by defining a Task Definition.
1.In the DuploCloud Portal, navigate to DevOps -> Containers -> ECS.
2.In the Task Definitions tab, click Add. The Add Task Definition page displays.
Add Task Definition page for adding multiple containers for ECS Services
3.Specify a unique Name for the Task Definition.
4.From the vCPUs list box, select the number of CPUs to be consumed by the task and change other defaults, if needed.
5.In the Container - 1 area, specify the Container Name of the first container you want to create.
6.In the Image field, specify the container Image name, as in the example below.
7.Click the Plus Icon (
 ) to the left of the Primary label, which designates that the first container you are defining is the primary container. The Container - 2 area displays.
8.Use the
 and
 icons to collapse and expand the Container areas as needed. Specify Container Name and Image name for each container that you add. Add more containers by clicking the Add Icon (
 ) to create up to five (5) containers, in each container area. Delete containers by clicking the Delete ( X ) Icon in each container area.
Primary label with Add and Expand/Collapse Icons in Container -1; Delete Icon in Container - 2. Container - 3 is editable.
9.Specify Port Mappings, and Add New mappings or Delete them, if needed.
10.Click Submit. Your Task Definition for multiple ECS Service containers is created.
Editing multiple containers for ECS Services
To edit the created Task Definition in order to add or delete multiple containers, select the Task Definition in the Task Definitions tab, and from the Actions menu, select Edit Task Definition.
Displaying Services
Once the deployment commands run successfully, click the Services tile on the Tenants page. Your deployments are displayed and you can now attach load balancers for the Services.

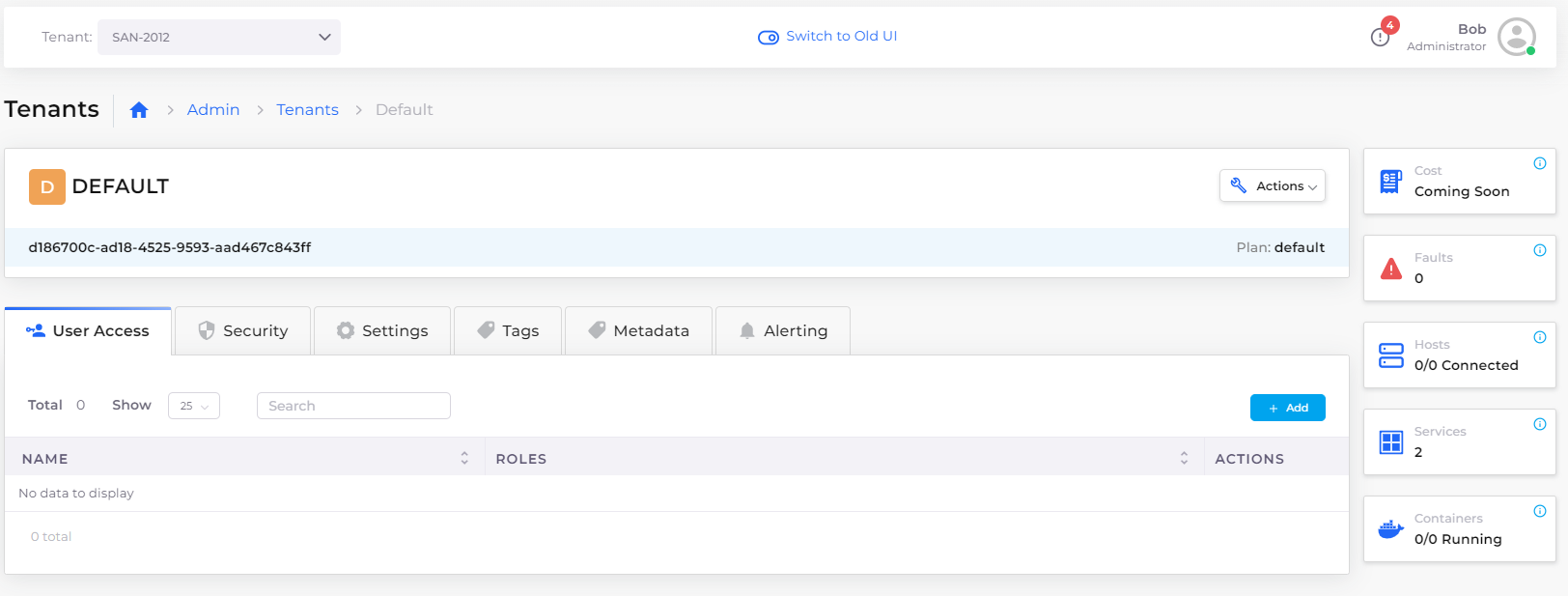

Tenants page with Services tile
Starting, stopping, and restarting multiple DuploCloud Services
Using the Services page, you can start, stop, and restart multiple services at one time.
1.In the DuploCloud Portal, navigate to DevOps -> Containers and select either EKS/Native or ECS.
2.Click the Services tab.
3.Use the checkbox column to select multiple services that you want to start or stop at once.
4.From the Service Actions menu, select Start Service, Stop Service, or Restart Service.
Your selected services are started, stopped, or restarted as you specified.
Services page with checkbox column (highlighted) and Service Actions menu
​

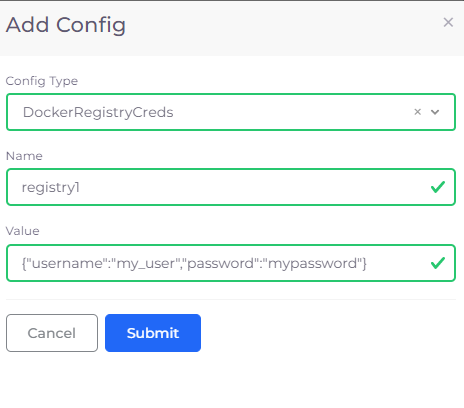

When you create a service, refer to the registry configuration in DevOps -> Containers -> EKS/Native -> Services, in the Configuration tab. Note the values in the Environment Variables and Other Docker Config fields.
For example:
{"DOCKER_REGISTRY_CREDENTIALS_NAME":"registry1"}
Managing Docker, Kubernetes, and AWS configs and Secrets
See the Configs and Secrets section for information about creating and managing:
Docker Registry Credentials
Configuration and secrets in AWS
Passing Kubernetes ConfigMaps as Environment Variables (EVs) and files.
Downloading the Kubectl Token and KubeConfig
DuploCloud provides you with a Just-In-Time (JIT) security token, for fifteen minutes, to access the kubectl cluster.
1.In the DuploCloud Portal, select Administrator-> Infrastructure from the navigation pane.
2.Select the Infrastructure in the Name column.
3.Click the EKS tab.
4.Copy the temporary Token and the Server Endpoint (Kubernetes URL) Values from the Infrastructure that you created. You can also download the complete configuration by clicking the Download Kube Config button.
5.Run the following commands, locally:
> kubectl config --kubeconfig=config-demo set-cluster EKS_CLUSTER --server=[EKS_API_URL] --insecure-skip-tls-verify
> kubectl config --kubeconfig=config-demo set-credentials tempadmin --token=[TOKEN]
> kubectl config --kubeconfig=config-demo set-context EKS --cluster=EKS_CLUSTER --user=tempadmin --namespace=duploservices-[TENANTNAME]
> export KUBECONFIG=config-demo
> kubectl config use-context EKS
You have now configured kubectl to point and access the Kubernetes cluster. You can apply deployment templates by running the following command:
> kubectl apply -f nginx.yaml
nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment-g
  labels:
    app: nginx-deployment-g
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx-deployment-g
  template:
    metadata:
      labels:
        app: nginx-deployment-g
    spec:
      nodeSelector:
        tenantname: "duploservices-stgeast1"
      containers:
      - name: nginx
        image: nginx:latest
        ports:
        - containerPort: 80
If you need security tokens of a longer duration, create them on your own. Secure them outside of the DuploCloud environment.
Elastic Container Service (ECS) Fargate
Fargate is a technology that you can use with ECS to run containers without having to manage servers or clusters of EC2 instances.
For information about Fargate, contact the DuploCloud support team.
